GESTRA Steam Traps
Overview
Founded in 1902 by Gustav Friedrich Gerdts in Bremen, Germany, GESTRA holds 213 national and international patents for safety and energy conservation of steam related products and systems. GESTRA's vision was to develop a complete range of innovative products based on the following core principles:
• Energy Conservation by minimizing steam usage.
• Boiler Safety and Maximizing Efficiencies.
• Increased Service Life and Operational Reliability.
Product information
|

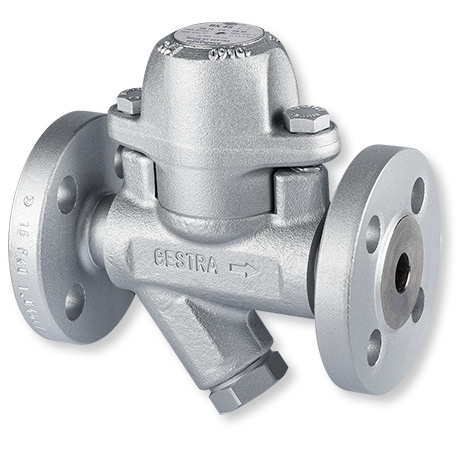

GESTRA Thermostatic Steam Trap (BK Series) Operating Principle: Thermostatic Nomial Size: 15 - 50 mm Nomial Pressure: PN 40 – 800, Cl 300 - 2500 Max Permitted Differencial Pressure: 22 – 275 bar Flowrate: 300 – 2550 kg/h |
 |
|

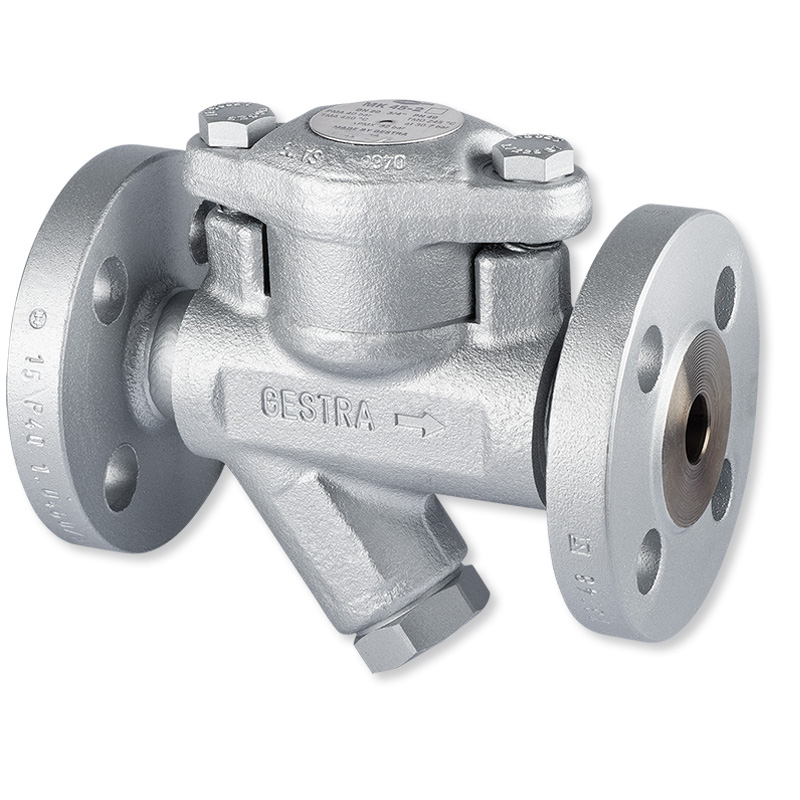

GESTRA Thermostatic Steam Trap (MK Series) Operating Principle: Thermostatic Nomial Size: 8 – 50 mm Nomial Pressure: PN 6 – 40, Cl 300 Max Permitted differencial Pressure: 4.5 – 32 bar Flowrate: 300 – 8200 kg/h |
 |
|

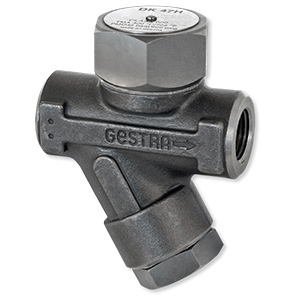

GESTRA Thermodynamic Steam Trap (DK Series) Operating Principle: Thermodynamic Nomial Size: 15 – 25 mm Nomial Pressure: PN 40 – 60 Max Permitted differencial Pressure: 32 – 42 bar Flowrate: 330 – 2100 kg/h |
 |
|

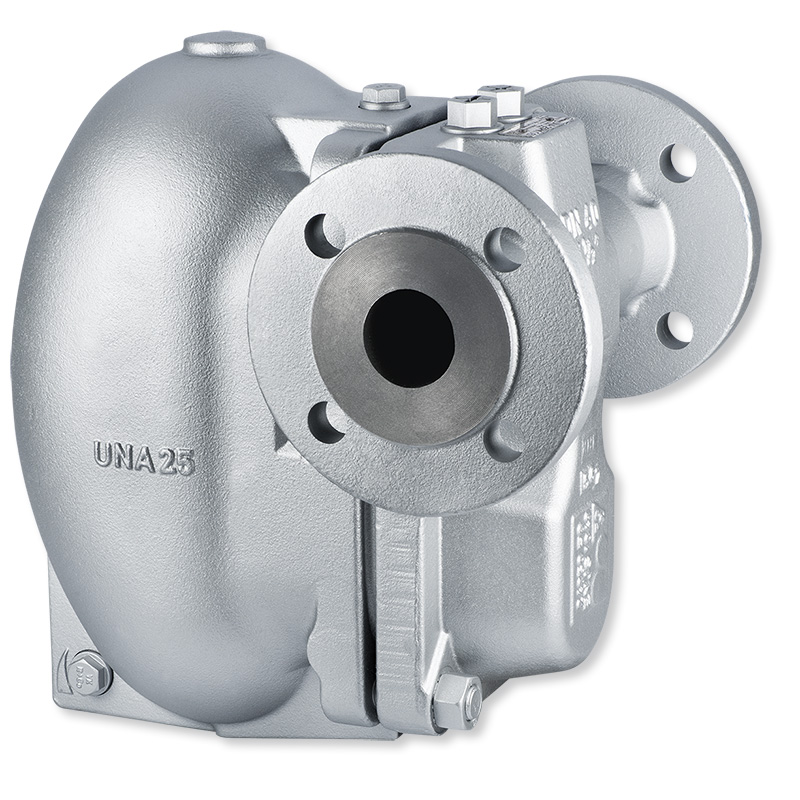

GESTRA Ball float Steam Trap (UNA Series) Operating Principle: Mechanical Nomial Pressure: 15 - 150 mm Nomial Pressure: PN 16 - 160, Cl 300 Max Permitted differencial Pressure: 13 - 140 bar Flowrate: 610 - 90.000 kg/h |
 |
|

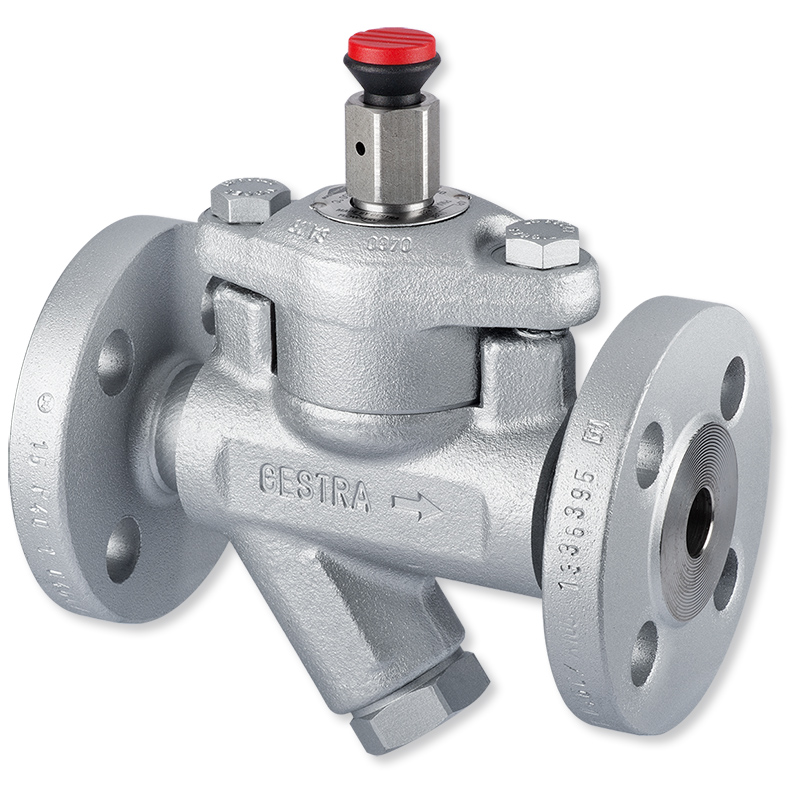

GESTRA Automatic Drainage Valve (AK Series) Nomial Size: 15 – 25 mm Nomial Pressure: PN 40 |
 |
|
GESTRA Steam Trap with Pump Function Nomial Size: 40 mm Nomial Pressure: PN 40 Max Permitted differencial Pressure: 13 bar Flowrate: 610 – 3200 kg/h
|
 |
|

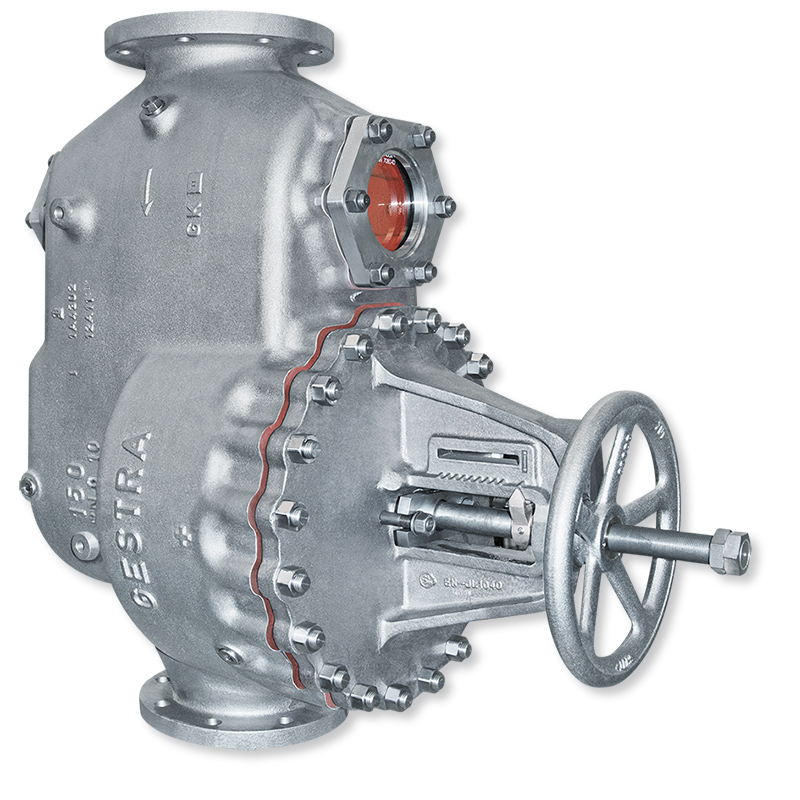

GESTRA Steam Trap for Discharge Large Flowrate Nomial Size: 50 – 150 mm Nomial Pressure: PN 16 - 25 Max Permitted differencial Pressure: 6 – 14 bar Flowrate: 18000 – 38000 kg/h |
  |
|

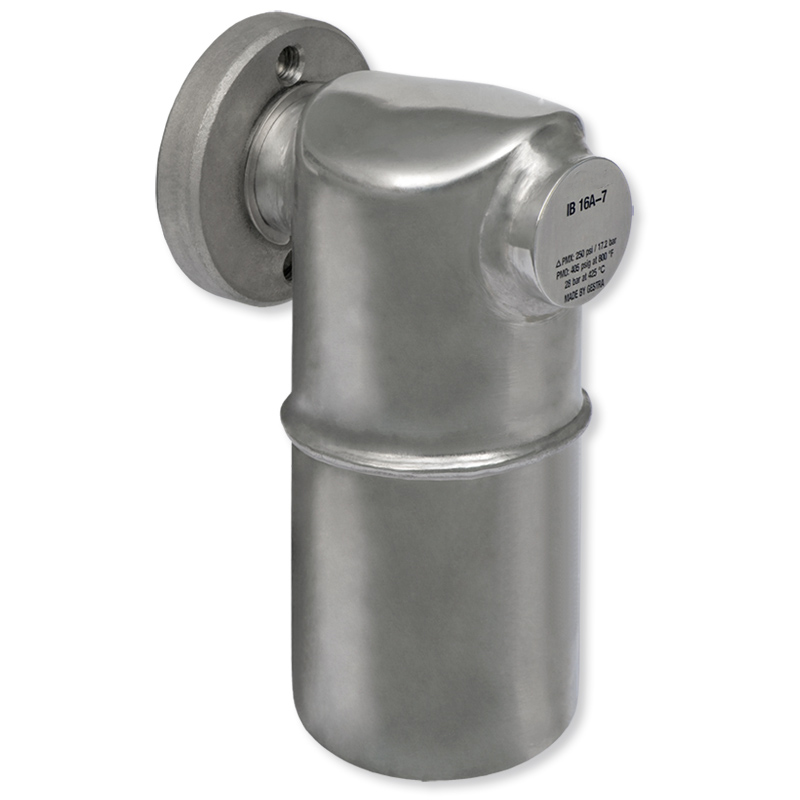

GESTRA Steam Trap for Universal Connection Steam Trap for Universal Connection: MK 36A-71-72, BK 36A-7, DK 36A-7, IB16A-7 Connector: UC 36, UCY 36, TS 36 |
  |
